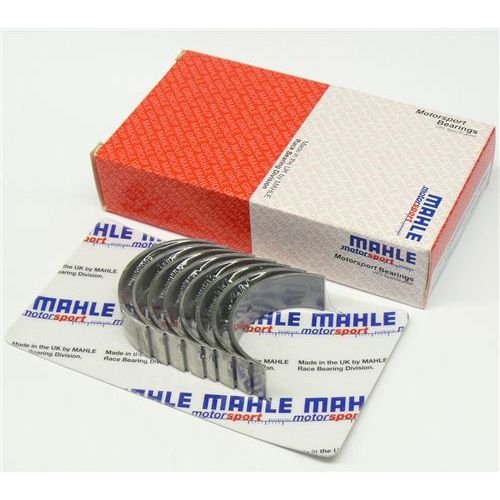

Con Rod Bearing Set Morgan 4/4 1968-

Crankshaft bearing set Morgan 4/4 1968-to date

HD cast substrate with indium lead overlay. 19 mm wide. Con rod/big end journal diameter 49.199/49.212 mm 1.9370/1.9375″

The new Mahle Motorsport bearing range contains technology transferred from Mahle’s F1 bearing technology. All bearings in this range are identified by laser marking rather than stamping.

Benefits of laser marking:

The most economical method of identifying a bearing is stamping. For motorsport applications where higher temperatures are experienced, the effectiveness of heat transfer to the housing must not be compromised. If the stamping is heavy and extends significantly around the bearing, causing poor back contact, heat transfer efficiency will be reduced.

Laser marking is an alternative method that creates a smaller and more consistent mark that does not distort the backing and, as such, does not interrupt back contact and the subsequent heat transfer.

Suitable only for race engines using a narrow journal steel crank (19 mm bearing journal width)

Ford Pre-Crossflow OHV Kent
Application:

• Ford Anglia 105E 1.0 1959-1967
• Ford Anglia 123E 1.2 1959-1967
• Ford Cortina Mk1 1.2/1.5 1962-1966
• Ford Cortina Mk2 1.2/1.3/1.5 1966-07/1967
• Ford Consul Classic 1.3/1.5 1961-1963
• Ford Consul Capri 1.3/1.5 1961-1964
• Ford Consul Corsair 1.5 1964-1965
• Ford Prefect 107E 1.0 1959-1961
• Marcos 1500 GT
• Morgan 4/4 1.0/1.3/1.5 1960-1968

Application Ford Crossflow OHV Kent:

• Ford Capri Mk1 1.3/1.6 1969-1974
• Ford Capri Mk2/Mk3 1.3 1974-1987
• Ford Cortina Mk2 1.3/1.6 07/67-1970
• Ford Cortina Mk3 1.3/1.6 1970-1976
• Ford Cortina Mk4/Mk5 1.3 1976-1982
• Ford Escort Mk1 1.1/1.3/1.6 Mexico 1968-1974
• Ford Escort Mk2 1.1/1.3/1.6 1975-1980
• Ford Fiesta Mk1 1.3 Supersport/1.6 XR2 1980-1983
• Caterham 7
• Morgan 4/4 1600 1.6 1968-
• TVR 1600 M 1.6 1972-1977

Application Ford Lotus Twin Cam 8v 1558cc
:

• Ford Lotus Cortina Mk1 1963-1966
• Ford Lotus Cortina Mk2 1967-1970
• Ford Escort Twin Cam 1968-1970
• Lotus Elan 1962-1974
• Lotus Europa 1971-1975
• Caterham 7 1973-1974

Ford Cosworth BD Series 16v
Application:

• Ford Escort Mk1 RS1600 1970-1974
• Ford Escort Mk2 RS1800 1975-1977
• BDA 1.6 road engine
• BDB/BDC 1.7 rally/race engine
• BDD 1.6 Atlantic race engine
• BDE 1.8 race engine
• BDG 2.0 race engine
• BDH 1.3 race engine
• BDJ 1.1 race engine
• BDP 2.0 race engine
• BDR 1.6/1.7 Caterham Super Seven engine
• BDT 1.8 RS200 engine
• BDX 2.0+ race engine
