Reference CMS-BMM41
Engine Block Morgan 4/4 1970-1982
€5.729,14
VAT and shipping not included
Made to order
Verified original
National & international shipping
Manufacturer warranty
15-day returns
Description

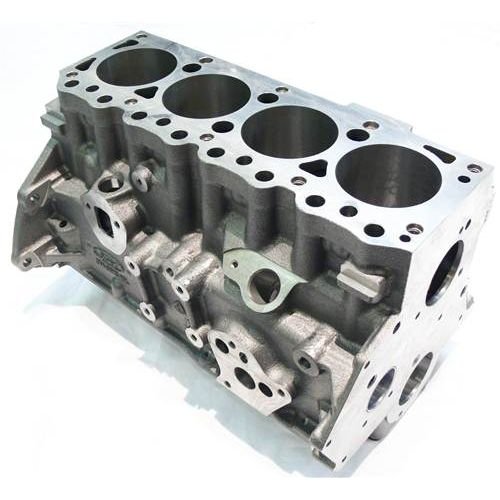

Engine block Morgan 4/4 1970-1982
The legendary Formula Ford Kent block has been remanufactured by Ford using a completely new grey iron casting that is stronger than the original.
Specifications include:
- Standard deck height of 8.200” with extra material allowing decking if required
- Semi-finished cylinder bores of 3.186” to allow the engine to be built with the desired clearances
- Lifter bore diameter .565”
- 40,000 PSI grey cast iron block
- Reinforced lower bellhousing bolt bosses
- Selected areas around the main support webs strengthened
- The centre main is machined to accept upper and lower crankshaft thrust washers (SOHC Pinto type)
- Includes cam bearings
Application Ford Crossflow OHV Kent :
- Ford Capri Mk1 1,6 08/1970-1974
- Ford Cortina Mk3 1.6 08/1970-1976
- Ford Escort Mk1 1.6 México 1970-1974
- Ford Escort Mk2 1.6 1975-1980
- Ford Fiesta Mk1 1.6 XR2 1980-1983
- Caterham 7
- TVR 1600 M 1,6 1972-1977
