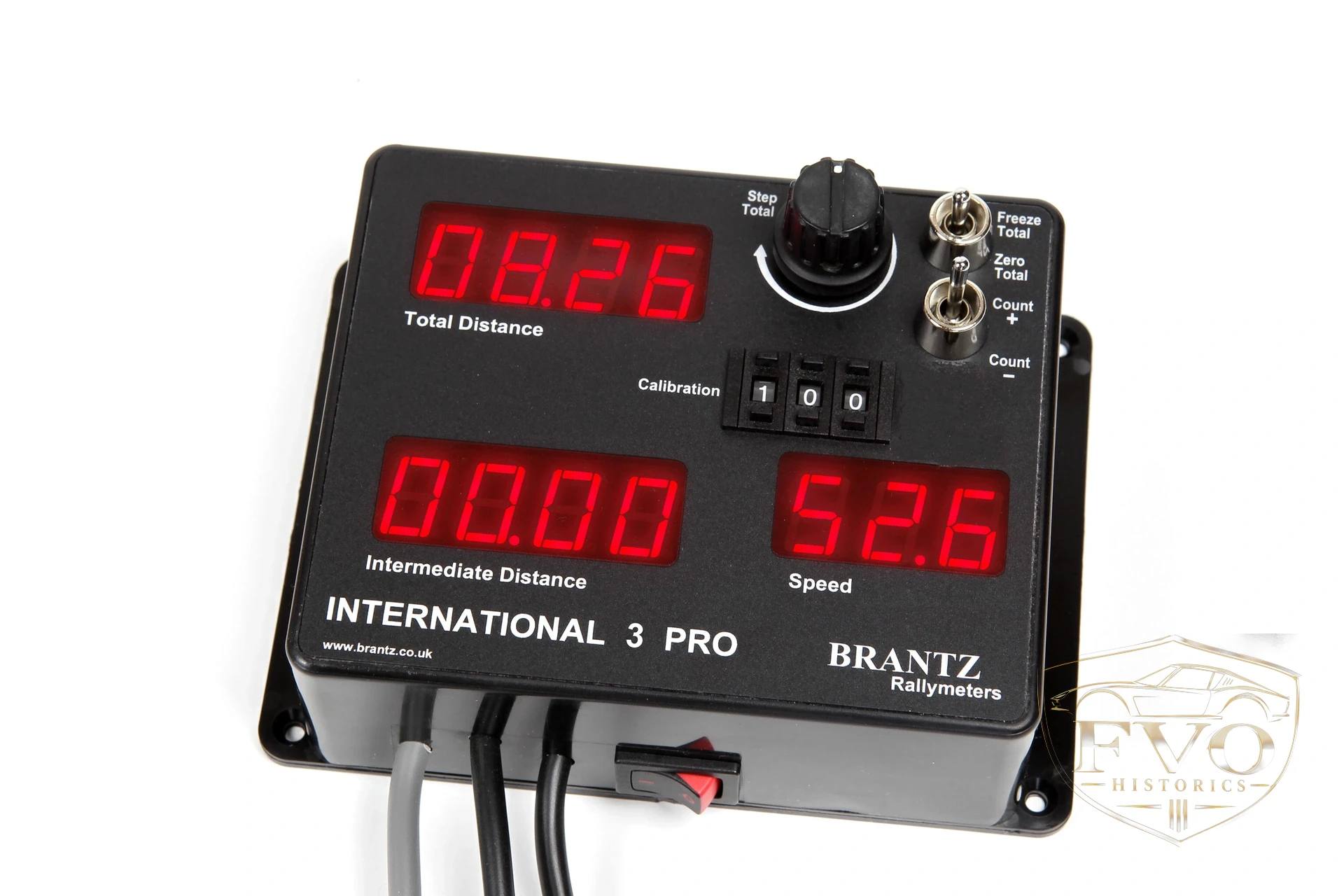

Brantz International 3 Pro

The International 3 Pro tripmeter has all the features of the International 2 Pro PLUS a third screen showing your Current Speed ONLY, ideal for events where average speed is not allowed but you need an accurate speedometer reading.

Features

• Triple Display (Red LEDs ~ 15mm high)
  • Total Distance
  • Intermediate Distance
  • Current Speed
• Calibrated easily via push-wheel switches on the front of the unit
• 999.9 Maximum Total Distance (with adjustable decimal point: 00.00 or 000.0)
• 99.99 Maximum Intermediate Distance
• 999 Maximum Vehicle Speed – Speed is displayed to WHOLE numbers only – no decimal point
• Can be calibrated to read in Miles or Kilometres.
• Remote Zero Unit (BR44) to operate the Intermediate Display – INCLUDED
• Zero, Forward, Reverse and Freeze Buttons on the front face of the Meter. Plus, a Stepper Knob – for manually increasing or decreasing the total distance travelled in case of corrections
• Suitable for BOTH Negative and Positive earthed vehicles

Specifications

• Requires 12V Power Supply
• Dimensions: 100mm x 120mm (140 inc. mounting flanges) x 45mm (Height x Width x Depth)
• Weight: 515g (inc. cables)
• Cable Length:
  • Power Cable ~1.2M
  • Sensor Cable ~1.9M
  • Remote Cable ~1.8M

Essential extras

• Brantz sensor
• In-Line Fuse Kit (CMS-BRFUSE)
• Power Converter (CMS-BR21-2) – Only for 6V Vehicles

Optional extras

• Plug Kit (CMS-BR43) – if you require this to be factory fitted add -PK+BR43 to the part code when ordering
• Dual Sensor Switch (CMS-BR49)
• Electronic Average Speedtable (CMS-BR19B)
• Pulse Doubler (CMS-BR52)
• Sensor Extension Cable (CMS-BR46-S)
• International Sun Screen / Night Filter (CMS-BRSS7)
• Retractable Sun Visor (BRSV-INT-R)
• International Window Mount (CMS-BRINT-RAM-W)
• Foot Zero Reset Pedal (CMS-BR44F)
• Timer V2 (CMS-BR32V2) + Rally Timer Driver Display (CMS-BR321)

Upgrade to

• International 3 DD Pro (CMS-BR8-DD)

Also available

• With factory-fitted 4-pin plug (CMS-BR8-PK): €398.95
• With factory-fitted Plug Kit (plug and BR43 socket) (CMS-BR8-PK+BR43): €438.95

Approximate lead time: 7-10 days from order with the supplier, plus 24 h delivery once we receive it.
